MP2151GTF, MP2151 Datasheet - MPS

MP2151GTF Synchronous Step-Down Converter

The MP2151 is a monolithic, step-down, switchmode converter with built-in, internal power MOSFETs. The MP2151 achieves 1A of continuous output current from a 2.5V to 5.5V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V. The constant-on-time (.

MP2151GTF Features

* include cycle-by-cycle current limiting and thermal shutdown. The MP2151 is ideal for a wide range of applications including high-performance DSPs, wireless power, portable and mobile devices, and other low-power systems. The MP2151 requires a minimal number of readily available, standard, external

MP2151-MPS.pdf

This datasheet PDF includes multiple part numbers: MP2151GTF, MP2151. Please refer to the document for exact specifications by model.

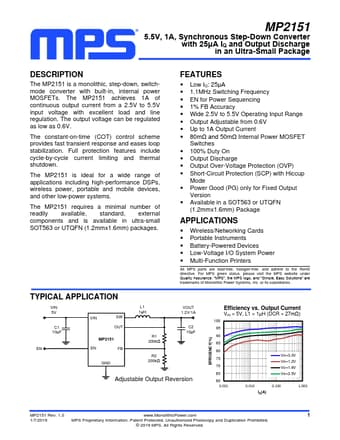

MP2151GTF Datasheet Preview Page 2 MP2151GTF Datasheet Preview Page 3

Datasheet Details

Part number:

MP2151GTF, MP2151

Manufacturer:

MPS

File Size:

1.31 MB

Description:

Synchronous step-down converter.

Note:

This datasheet PDF includes multiple part numbers: MP2151GTF, MP2151.
Please refer to the document for exact specifications by model.
