MP2158

Synchronous Step Down Switcher

MP2158 Features

* Very Low IQ: 17μA

* Default 1.5MHz Switching Frequency

* EN and Power Good for Power Sequencing

* Ultra-small 2.0x1.5mm QFN8 Package

* Wide 2.5V to 6V Operating Input Range Output Adjustable from 0.6V

* Up to 1A Output Current

* 100% Duty Cycle in Dropout

* 118mΩ an

MP2158 General Description

The MP2158 is a monolithic step-down switch mode converter with built-in internal power MOSFETs. It achieves 1A continuous output current from a 2.5V to 6V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V. The Constant-On-Time control scheme p.

MP2158 Datasheet (577.29 KB)

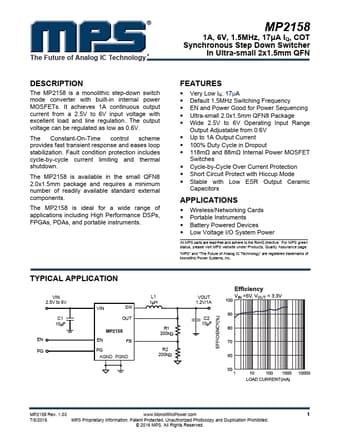

Preview of MP2158 PDF

Datasheet Details

Part number:

MP2158

Manufacturer:

MPS

File Size:

577.29 KB

Description:

Synchronous step down switcher.
