MP2158GQH - Synchronous Step Down Switcher

Download the MP2158GQH datasheet PDF. This datasheet also covers the MP2158 variant, as both devices belong to the same synchronous step down switcher family and are provided as variant models within a single manufacturer datasheet.

Description

The MP2158 is a monolithic step-down switch mode converter with built-in internal power MOSFETs.

It achieves 1A continuous output current from a 2.5V to 6V input voltage with excellent load and line regulation.

The output voltage can be regulated as low as 0.6V.

Features

  • Very Low IQ: 17μA.
  • Default 1.5MHz Switching Frequency.
  • EN and Power Good for Power Sequencing.
  • Ultra-small 2.0x1.5mm QFN8 Package.
  • Wide 2.5V to 6V Operating Input Range Output Adjustable from 0.6V.
  • Up to 1A Output Current.
  • 100% Duty Cycle in Dropout.
  • 118mΩ and 88mΩ Internal Power MOSFET Switches.
  • Cycle-by-Cycle Over Current Protection.
  • Short Circuit Protect with Hiccup Mode.
  • Stable with Low ESR Output Ceramic Capacitors.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MP2158-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MP2153K3C10 Safety Standard Capacitor ETC
MP2154K3D30 Safety Standard Capacitor ETC
MP2154K3E10 Safety Standard Capacitor ETC
MP2155K3F20 Safety Standard Capacitor ETC
MP2155K3F40 Safety Standard Capacitor ETC

Other Datasheets by Monolithic Power Systems

Part Number Description
MP2158 Synchronous Step Down Switcher
MP2158A Synchronous Step-Down Converter
MP2158AGQH Synchronous Step-Down Converter
MP2151 Synchronous Step-Down Converter
MP2151GTF Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

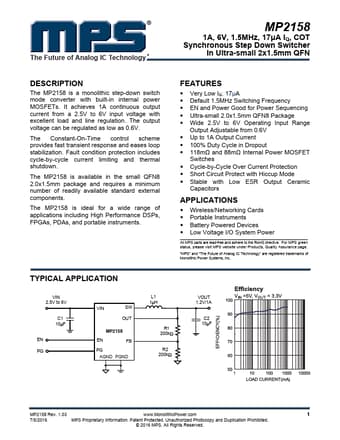

The Future of Analog IC Technology MP2158 1A, 6V, 1.5MHz, 17μA IQ, COT Synchronous Step Down Switcher In Ultra-small 2x1.5mm QFN DESCRIPTION The MP2158 is a monolithic step-down switch mode converter with built-in internal power MOSFETs. It achieves 1A continuous output current from a 2.5V to 6V input voltage with excellent load and line regulation. The output voltage can be regulated as low as 0.6V. The Constant-On-Time control scheme provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The MP2158 is available in the small QFN8 2.0x1.5mm package and requires a minimum number of readily available standard external components.
