MP2182GTL, MP2182 - 2A Synchronous Step-Down Converter

MPS

📥 Download Datasheet

MP2182GTL Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2182GTL, MP2182. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

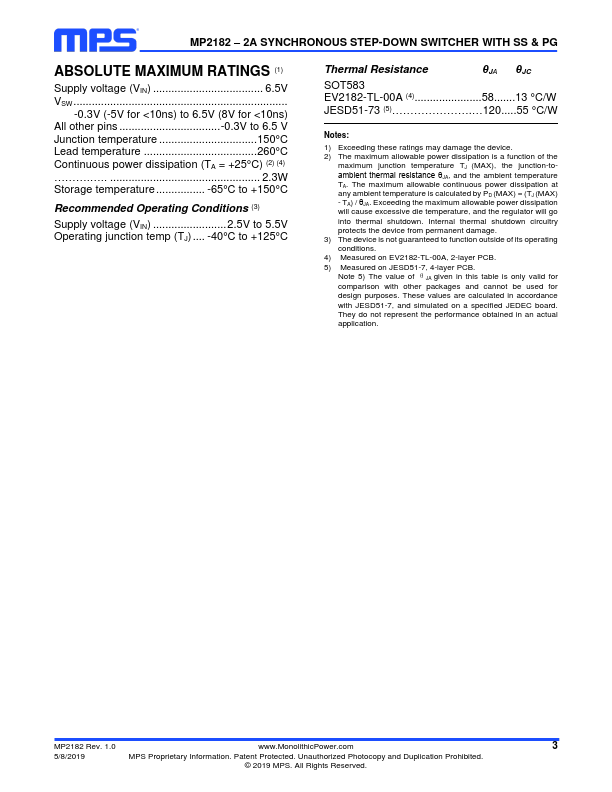

datasheet Preview Page 3

Datasheet Details

Part number	MP2182GTL, MP2182
Manufacturer	MPS
File Size	1.05 MB
Description	2A Synchronous Step-Down Converter
Datasheet	MP2182-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP2182GTL, MP2182. Please refer to the document for exact specifications by model.

MP2182GTL Product details

Description

The MP2182 is a monolithic, step-down, switchmode converter with built-in internal power MOSFETs.

Features

Low IQ: 21μA.
1.2MHz Switching Frequency.
EN for Power Sequencing.
1% FB Accuracy.
Wide 2.5V to 5.5V Operating Input Range.
Output Adjustable from 0.6V.
Up to 2A Output Current.
80mΩ and 40mΩ Internal Power MOSFET Switches.
100% Duty On.
Output Discharge.
VO OVP.
External Soft-Start Control.
Short-Circuit Protection with Hiccup Mode.
Power Good.
Available in a SOT583 Package.
