MP2451DJ Step-Down Converter

The MP2451 is a high frequency (2MHz) stepdown switching regulator with integrated internal high-side high voltage power MOSFET. It provides single 0.6A (or less) highly efficient output with current mode control for fast loop response. The wide 3.3V to 36V input range accommodates a variety of step.

MP2451DJ Features

* 130μA Operating Quiescent Current

* Wide 3.3V to 36V Operating Input Range

* 500mΩ Internal Power MOSFET

* 2MHz fixed Switching Frequency

* Internally compensated

* Stable with Ceramic Output Capacitors

* Internal Soft-Start

* Precision Current Limit Without Current

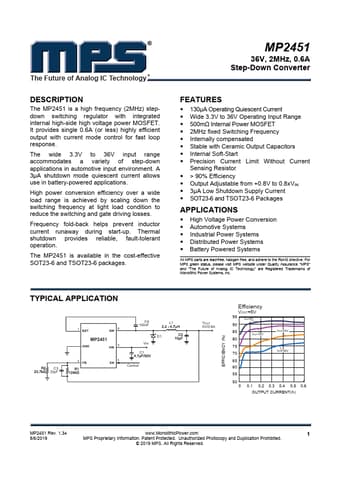

MP2451-MPS.pdf

MP2451DJ Datasheet Preview — This datasheet PDF includes multiple part numbers: MP2451DJ, MP2451. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MP2451DJ, MP2451

Manufacturer:

MPS

File Size:

466.54 KB

Description:

Step-down converter.

Note:

This datasheet PDF includes multiple part numbers: MP2451DJ, MP2451.
Please refer to the document for exact specifications by model.
