MP2483DS Datasheet - MPS

Programmable Frequency White LED Driver

MP2483DS Features

* 2.5A Maximum Output Current

* Unique Step-up/down Operation (Buck- Boost Mode)

* Wide 4.5V to 55V Operating Input Range for Step-Down Applications (Buck Mode)

* 0.28Ω Internal Power MOSFET Switch

* Adjustable Switching Frequency

* Analog and PWM Dimm

MP2483DS General Description

The MP2483 is a 55V, 2.5A, white LED driver suitable for either step-down or inverting step-up/down applications. It achieves 2.5A peak output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabil.

MP2483DS Datasheet (380.01 KB)

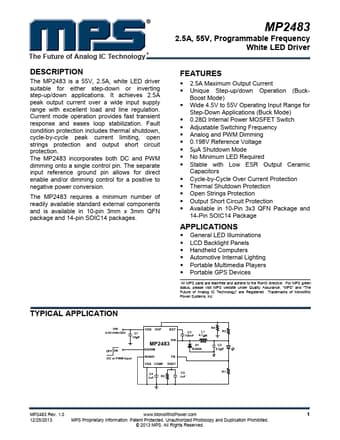

MP2483DS Datasheet Preview — Preview of MP2483DS PDF

Datasheet Details

Part number:

MP2483DS

Manufacturer:

MPS

File Size:

380.01 KB

Description:

Programmable frequency white led driver.
