MP2562DS Datasheet - MPS

50V Step-Down Converter

MP2562DS Features

* 120μA Quiescent Current(12uA Shutdown)

* Wide 4.5V to 50V Operating Input Range

* 460mΩ Internal Power MOSFET

* Up to 4MHz Programmable Switching Frequency

* Stable with Ceramic Capacitor

* Internal Soft-Start

* Internally Set Current Limit without external Current Sens

MP2562DS General Description

The MP2562 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 1A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 50V input range accommodates a variety of step-down application.

MP2562DS Datasheet (471.17 KB)

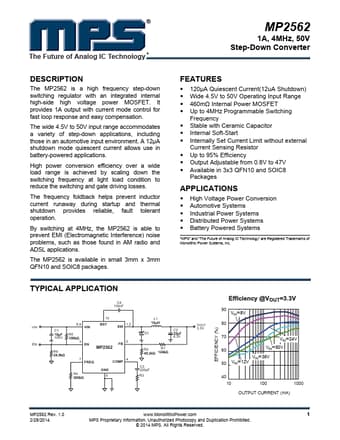

Preview of MP2562DS PDF

Datasheet Details

Part number:

MP2562DS

Manufacturer:

MPS

File Size:

471.17 KB

Description:

50v step-down converter.
