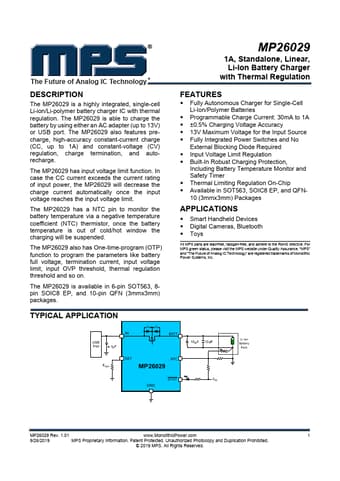

The Future of Analog IC Technology DESCRIPTION The MP26029 is a highly integrated, single-cell Li-ion/Li-polymer battery charger IC with thermal regulation. The MP26029 is able to charge the battery by using either an AC adapter (up to 13V) or USB port. The MP26029 also Features precharge, high-accuracy constant-current charge (CC, up to 1A) and constant-voltage (CV) regulation, charge termination, and autorecharge. The MP26029 has input voltage limit function. In case the CC current exceeds the current rating of input power, the MP26029 will decrease the charge current automatically once the input voltage reaches the input voltage limit. The MP26029 has a NTC pin to monitor the battery temperature via a negative temperature coefficient (NTC) thermistor, once the battery temperature is out of cold/hot window the charging will be suspended. The MP26029 also has One-time-program (OTP) function to program the parameters like battery full voltage, termination current, input voltage limit, input OVP threshold, thermal regulation threshold and so on. The MP26029 is available in 6-pin SOT563, 8pin SOIC8 EP, and 10-pin QFN (3mmx3mm) packages. TYPICAL APPLICATION 1A, Standalone, Linear, Li-Ion Battery Charger with Thermal Regulation Features - Fully Autonomous Charger for Single-Cell Li-Ion/Polymer Batteries - Programmable Charge Current: 30m A to 1A - ±0.5% Charging Voltage Accuracy - 13V Maximum Voltage for the Input Source - Fully Integrated Power Switches and No External Blocking Diode Required - Input Voltage Limit Regulation - Built-In Robust Charging Protection, Including Battery Temperature Monitor and Safety Timer - Thermal Limiting Regulation On-Chip - Available in SOT563, SOIC8 EP, and QFN10 (3mmx3mm) Packages APPLICATIONS - Smart Handheld Devices - Digital Cameras, Bluetooth - Toys All MPS parts are lead-free, halogen-free, and adhere to the Ro HS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future...
