MP4008 High-Current Accuracy WLED Controller

MP4008 Description

The Future of Analog IC Technology MP4008 High-Brightness, High-Current Accuracy WLED Controller .
The MP4008 is a current-mode controller designed for driving high brightness light emitting diodes (LEDs) with a wide input voltage from 9V to 28V.

MP4008 Features

* include undervoltage lockout, over-voltage protection, overcurrent protection, short LED protection, short output protection, short inductor/diode protection, and OTP. The MP4008 is available in a SOIC-8 package. FEATURES
* Constant Current WLED Driver
* 280mV Feedback Voltage with ±1.8% Ac

MP4008 Applications

* LCD Backlighting
* DC/DC LED Driver
* General Illumination
* Industrial Lighting
* Automotive/ Decorative LED Lighting All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS”

📥 Download Datasheet

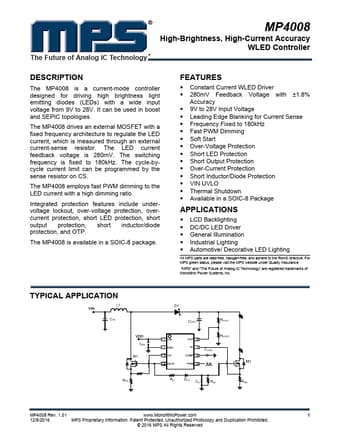

Preview of MP4008 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP4008
Manufacturer
MPS
File Size
919.77 KB
Datasheet
MP4008-MPS.pdf
Description
High-Current Accuracy WLED Controller
