MP4415A

Synchronous Step-Down Converter

MP4415A Features

* include over-current protection (OCP) and thermal shutdown. The MP4415A requires a minimal number of readily available, standard external components, and is available in a space-saving QFN-13 (2.5mmx3mm) package. TYPICAL APPLICATION 4V-36V EN/SYNC PG BST MP4415A EN/SYNC SW VCC FB PG PGND AGND

MP4415A General Description

The MP4415A is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. The MP4415A offers a very compact solution that achieves 1.5A of continuous output current with excellent load and line regulation over a wide input supply range. The MP4415A uses s.

MP4415A Datasheet (1.65 MB)

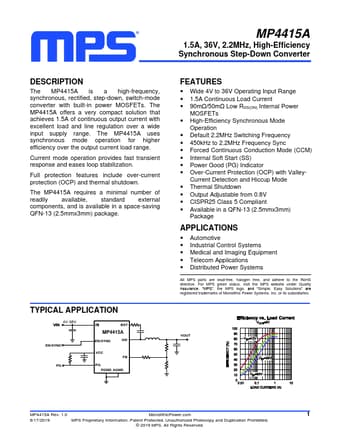

Preview of MP4415A PDF

Datasheet Details

Part number:

MP4415A

Manufacturer:

MPS

File Size:

1.65 MB

Description:

Synchronous step-down converter.
