MP8007 Datasheet - MPS

MP8007 Fully-Integrated 802.3af-Compatible PoE PD Interface

The MP8007 is an integrated IEEE 802.3af compatible PoE Powered Device with PD interface and power converter. It is targeted for isolated or non-isolated 13W PoE application. The PD interface has all the functions of IEEE 802.3af, including detection, classification, 120mA inrush current, 840mA oper.

MP8007 Features

* protection including over current protection, over voltage protection, open circuit protection and thermal shutdown. The MP8007 can support a front-end solution for PoE-PD application with minimum external component, it is available in QFN-28 (4mmX5mm) package. TYPICAL APPLICATION MP8007 Fully-Inte

MP8007-MPS.pdf

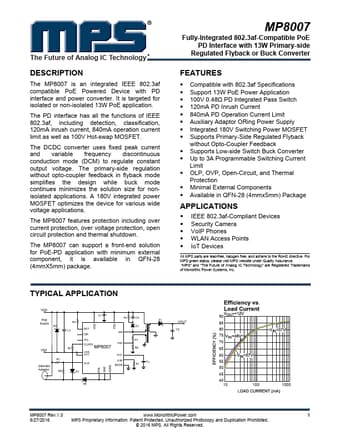

Preview of MP8007 PDF
MP8007 Datasheet Preview Page 2 MP8007 Datasheet Preview Page 3

Datasheet Details

Part number:

MP8007

Manufacturer:

MPS

File Size:

1.15 MB

Description:

Fully-integrated 802.3af-compatible poe pd interface.
