MP86934 Datasheet - MPS

MP86934 monolithic half-bridge

The MP86934 is a monolithic half-bridge with built-in internal power MOSFETs and gate drivers. It achieves 25A of continuous output current over a wide input supply range. Integration of the driver and MOSFETS results in high efficiency due to optimal dead time and parasitic inductance reduction. Th.

MP86934 Features

* Wide 4.5V to 16V Operating Input Range

* Compliant to Intel DrMOS V4.0 Spec.

* 25A Output Current

* Accepts Tri-State PWM Signal

* Built-In Switch for bootstrap

* Current Sense

* Temperature Sense

* Current Limit Protection

* Over Temperature Protection

* Fa

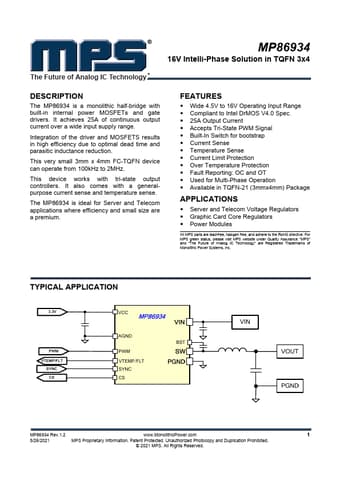

MP86934 Datasheet (557.27 KB)
