MP8706EN, MP8706 Synchronous Step-down Converter

MP8706EN Description

The Future of Analog IC Technology .
The MP8706 is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs.

MP8706EN Features

* include OCP and thermal shut down. The MP8706 requires a minimum number of readily available standard external components and is available in a space saving 8-pin SOIC package with an exposed pad. MP8706 High Efficiency 3A, 21V, 500KHz Synchronous Step-down Converter FEATURES
* Wide 4.5V to

MP8706EN Applications

* Notebook Systems and I/O Power
* Networking Systems
* Digital Set Top Boxes
* Personal Video Recorders
* Flat Panel Television and Monitors
* Distributed Power Systems “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monoli

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MP8706EN, MP8706. Please refer to the document for exact specifications by model.

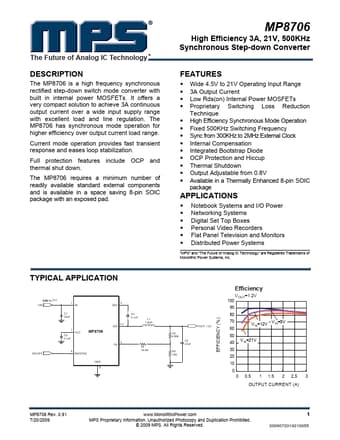

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP8706EN, MP8706
Manufacturer
MPS
File Size
430.42 KB
Datasheet
MP8706-MPS.pdf
Description
Synchronous Step-down Converter
Note
This datasheet PDF includes multiple part numbers: MP8706EN, MP8706.
Please refer to the document for exact specifications by model.
