MP8865 High-Efficiency 6A 21V Synchronous Step-Down Converter

MP8865 Description

MP8865 High-Efficiency, 6A, 21V, Synchronous Step-Down Converter with I2C Interface .
The MP8865 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with an I2C control interface.

MP8865 Features

* include over-current protection (OCP), over-voltage protection (OVP), and thermal shutdown (TSD). The MP8865 requires a minimal number of readily available, standard, external components and is available in a QFN-15 3mm x 3mm package. FEATURES
* Wide 4.5V to 21V Operation Input Range
* 45mΩ

MP8865 Applications

* SoC and Media Processors
* General Consumers
* Distributed Power Systems All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the MPS website under Quality Assurance. “MPS” and “The Future of Analog IC Technology” are registere

📥 Download Datasheet

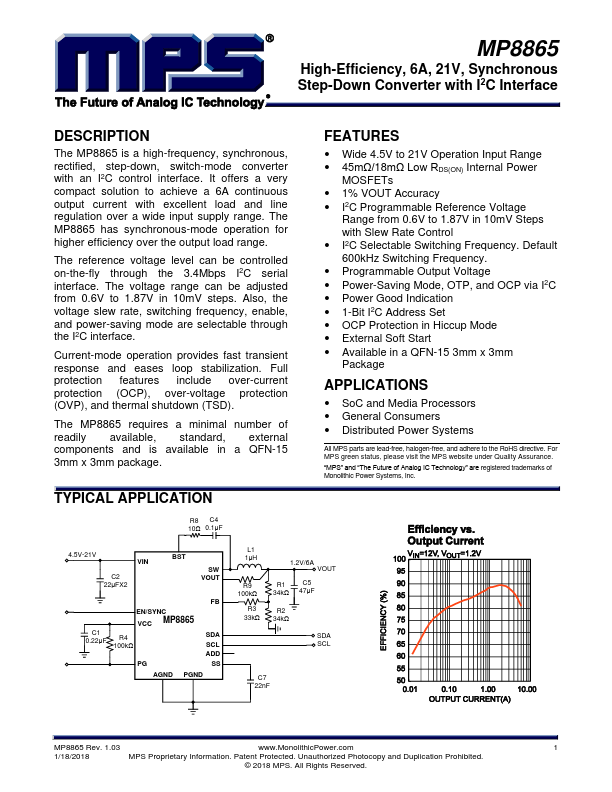

Preview of MP8865 PDF

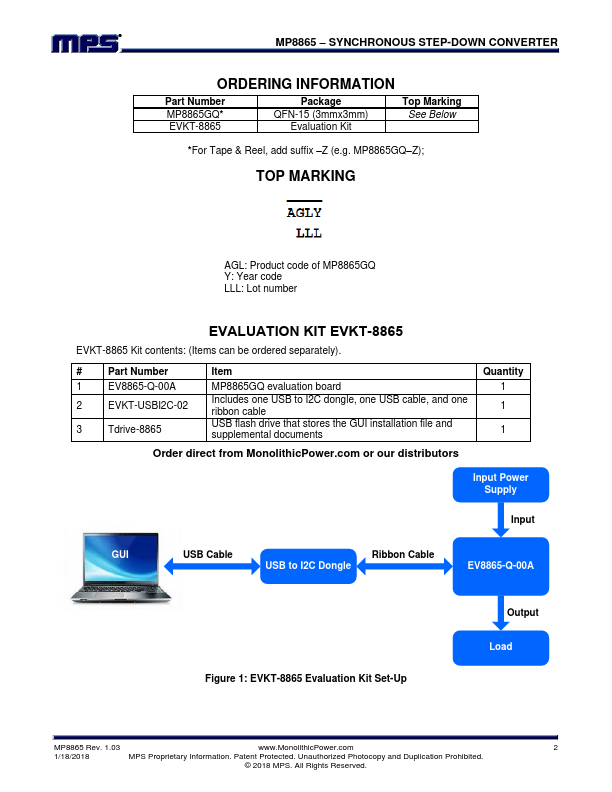

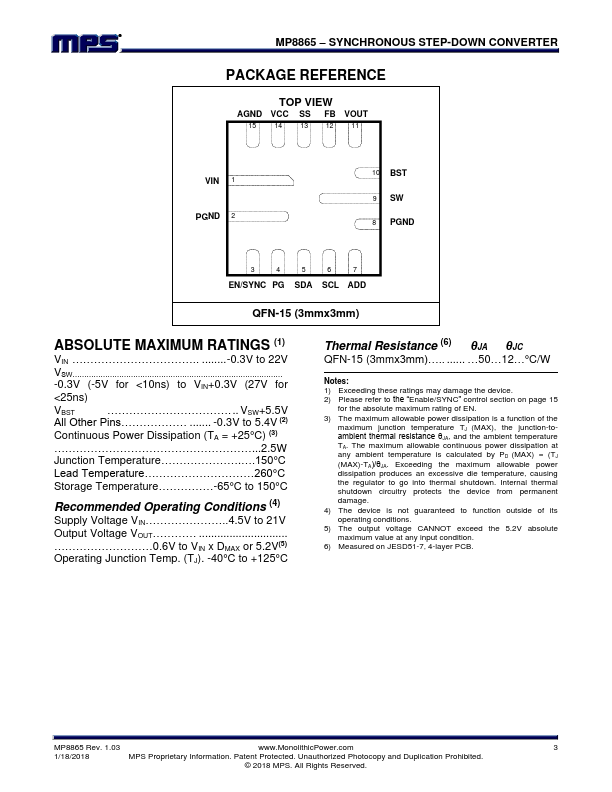

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MP8865
Manufacturer
MPS
File Size
1.55 MB
Datasheet
MP8865-MPS.pdf
Description
High-Efficiency 6A 21V Synchronous Step-Down Converter
