MP9942

410kHz Synchronous Step-Down Converter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Monolithic Power Systems MP9942GJ-Z IC REG BUCK ADJ 2A TSOT23-8 DigiKey 2038 1000 units
$1.05

MP9942 Datasheet (731.61 KB)

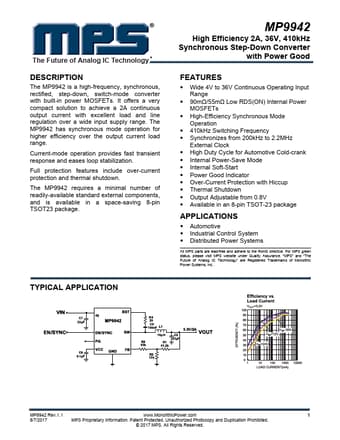

Preview of MP9942 PDF Datasheet

Datasheet Details

Part number:

MP9942

Manufacturer:

MPS

File Size:

731.61 KB

Description:

410khz synchronous step-down converter

MP9942 Features

* include over-current protection and thermal shutdown. The MP9942 requires a minimal number of readily-available standard external components, and is available in a space-saving 8-pin TSOT23 package. TYPICAL APPLICATION MP9942 High Efficiency 2A, 36V, 410kHz Synchronous Step-Down Converter with Powe

MP9942 General Description

The MP9942 is a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current with excellent load and line regulation over a wide input supply range. The MP9942 has synchronous mode op.
