MPM3515 - Step-Down Converter

General Description

The MPM3515 is a synchronous, rectified, stepdown converter with built-in power MOSFETs, inductors, and capacitors.

Key Features

  • include over-current protection (OCP) and thermal shutdown. The MPM3515 eliminates design and manufacturing risks while improving the time to market dramatically. The MPM3515 is available in a space-saving QFN-17 (3mmx5mmx1.6mm) package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPM3002 TMOS ICePAK Power-Module Motorola
MPM3003 ICE PAK POWER-MODULE Motorola
MPM3201 (MPM Series) Rotary Motors Parker
MPM3202 (MPM Series) Rotary Motors Parker
MPM3203 (MPM Series) Rotary Motors Parker

Other Datasheets by Monolithic Power Systems

Part Number Description
MPM3515GQV Step-Down Converter
MPM3510A 36V/1.2A Module Synchronous Step-Down Converter
MPM3510AGQV 36V/1.2A Module Synchronous Step-Down Converter
MPM3506A Synchronous Step-Down Converter
MPM3506AGQV Synchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

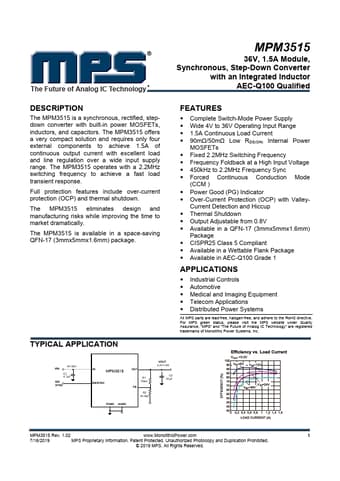

The Future of Analog IC Technology MPM3515 36V, 1.5A Module, Synchronous, Step-Down Converter with an Integrated Inductor AEC-Q100 Qualified DESCRIPTION The MPM3515 is a synchronous, rectified, stepdown converter with built-in power MOSFETs, inductors, and capacitors. The MPM3515 offers a very compact solution and requires only four external components to achieve 1.5A of continuous output current with excellent load and line regulation over a wide input supply range. The MPM3515 operates with a 2.2MHz switching frequency to achieve a fast load transient response. Full protection features include over-current protection (OCP) and thermal shutdown. The MPM3515 eliminates design and manufacturing risks while improving the time to market dramatically.
