MPQ2143H - 3A 5.5V 2.0MHz Synchronous Step Down Switcher

MPQ2143H Description

MPQ2143H 3A, 5.5V, 2.0MHz Synchronous Step Down Switcher .
The MPQ2143H is a monolithic, step-down, switch-mode converter with internal power MOSFETs.

MPQ2143H Features

* Wide 2.5V to 5.5V Operating Input Range
* Output Voltage as Low as 0.6V
* 100% Duty Cycle in Dropout
* Up to 3A Output Current
* 80mΩ and 40mΩ Internal Power MOSFET Switches
* Default 2.0MHz Switching Frequency
* EN and Power-Good for Power Sequencing
* Cycle-by-Cyc

📥 Download Datasheet

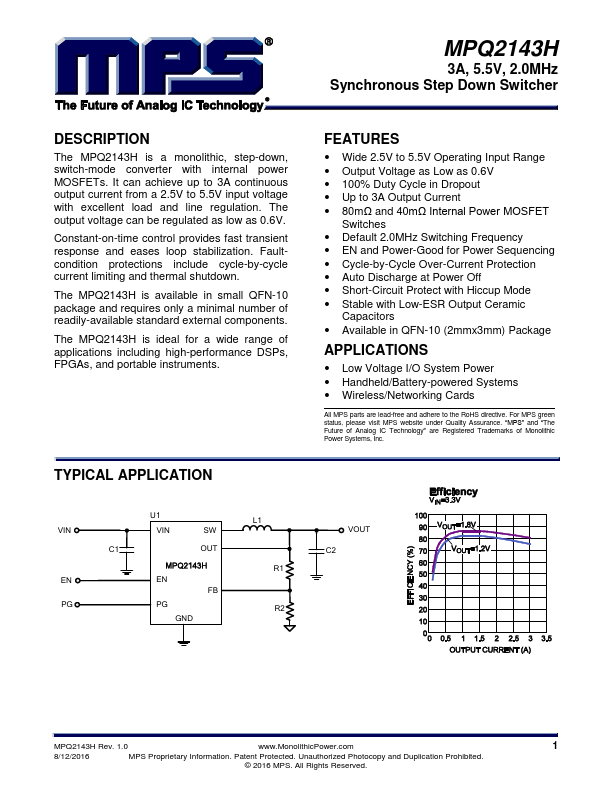

Preview of MPQ2143H PDF

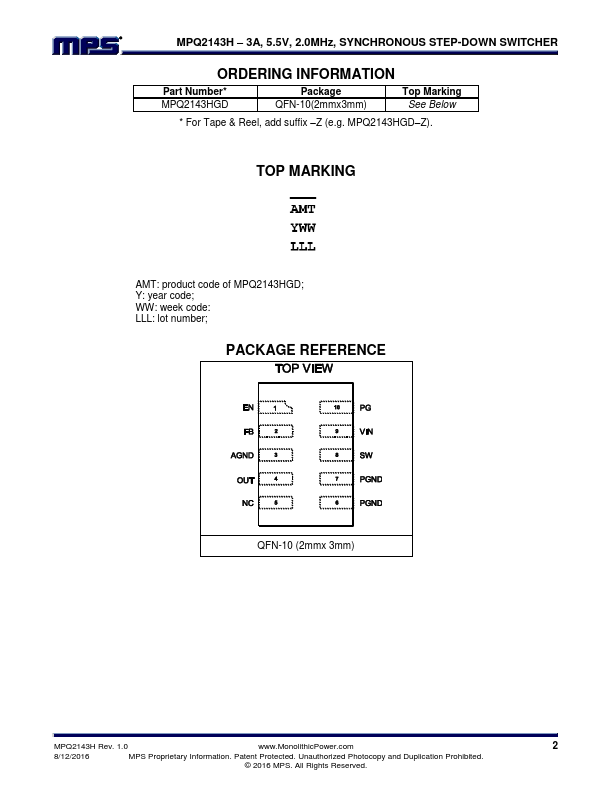

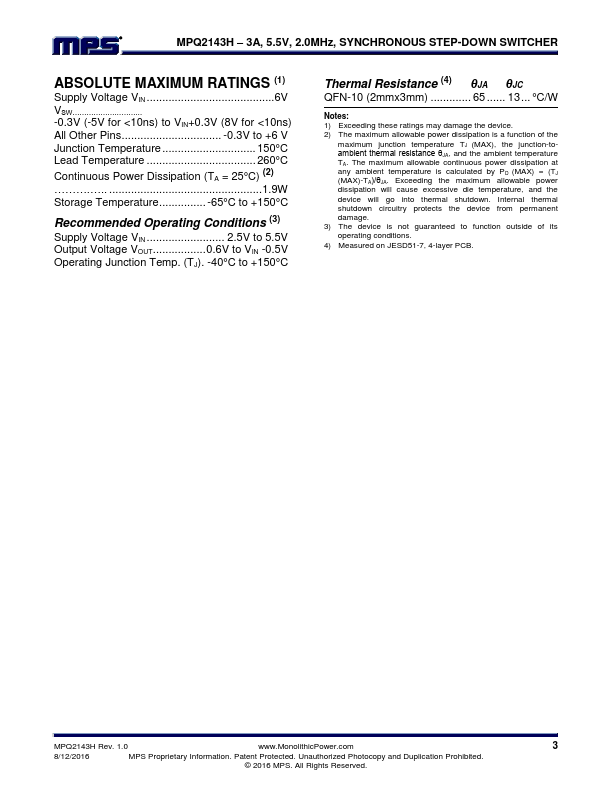

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPQ2143H
Manufacturer
MPS
File Size
856.49 KB
Datasheet
MPQ2143H-MPS.pdf
Description
3A 5.5V 2.0MHz Synchronous Step Down Switcher
