MPQ2483ADS - 2.5A Programmable Frequency LED Driver

Product Overview

MPS

📥 Download Datasheet

MPQ2483ADS 2.5A Programmable Frequency LED Driver by MPS - Datasheet Preview — Datasheet preview – MPQ2483ADS

Datasheet Details

Part number	MPQ2483ADS
Manufacturer	MPS
File Size	599.01 KB
Description	2.5A Programmable Frequency LED Driver
Datasheet	MPQ2483ADS Datasheet
Note	This datasheet PDF includes multiple part numbers: MPQ2483ADS, MPQ2483A. Please refer to the document for exact specifications by model.

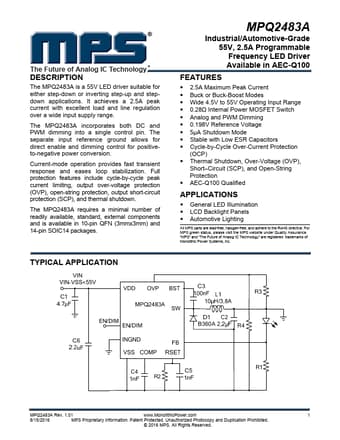

Additional preview pages of the MPQ2483ADS datasheet.

Product details

Description

The MPQ2483A is a 55V LED driver suitable for either step-down or inverting step-up and stepdown applications.

Features

include cycle-by-cycle peak current limiting, output over-voltage protection (OVP), open-string protection, output short-circuit protection (SCP), and thermal shutdown. The MPQ2483A requires a minimal number of readily available, standard, external components and is available in 10-pin QFN (3mmx3mm) and 14-pin SOIC14 packages.
