23H246-01IP68 Datasheet - MS TECHNOLOGY

23H246-01IP68 Hybrid Stepper Motor

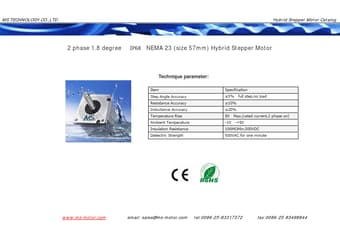

MS TECHNOLOGY CO.,LTD. Hybrid Stepper Motor Catalog 2 phase 1.8 degree IP68 NEMA 23 (size 57mm) Hybrid Stepper Motor Technique parameter: Item Step Angle Accuracy Resistance Accuracy Inductance Accuracy Temperature Rise Ambient Temperature Insulation Resistance Dielectric Strength Specification ±5% full step,no load ±10% ±20% 80 Max.(rated current,2 phase on) -10 -+50 100MΩMin.500VDC 500VAC for one minute www.ms-motor.com email: sales@ms-motor.com tel:0086-25-83317372 fax:0086-25-83498844.

23H246-01IP68-MSTECHNOLOGY.pdf

Preview of 23H246-01IP68 PDF
23H246-01IP68 Datasheet Preview Page 2 23H246-01IP68 Datasheet Preview Page 3

Datasheet Details

Part number:

23H246-01IP68

Manufacturer:

MS TECHNOLOGY

File Size:

126.20 KB

Description:

Hybrid stepper motor.
