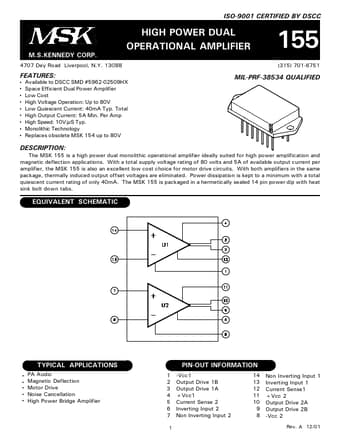

MSK155
FEATURES
:
Available to DSCC SMD #5962-02509HX Space Efficient Dual Power Amplifier Low Cost High Voltage Operation: Up to 80V Low Quiescent Current: 40m A Typ. Total High Output Current: 5A Min. Per Amp High Speed: 10V/µS Typ. Monolithic Technology Replaces obsolete MSK 154 up to 80V
MIL-PRF-38534 QUALIFIED
DESCRIPTION
:
The MSK 155 is a high power dual monolithic operational amplifier ideally suited for high power amplification and magnetic deflection applications. With a total supply voltage rating of 80 volts and 5A of available output current per amplifier, the MSK 155 is also an excellent low cost choice for motor drive circuits. With both amplifiers in the same package, thermally induced output offset voltages are eliminated. Power dissipation is kept to a minimum with a total quiescent current rating of only 40m A. The MSK 155 is packaged in a hermetically sealed 14 pin power dip with heat sink bolt down tabs.
EQUIVALENT SCHEMATIC
TYPICAL APPLICATIONS
PA Audio Magnetic...
