MFP6291LR-G1 - step-up converter

MFP6291LR-G1 Datasheet Preview — Preview of MFP6291LR-G1 PDF

Datasheet Details

Part number	MFP6291LR-G1
Manufacturer	MSKSEMI
File Size	1.24 MB
Description	step-up converter
Datasheet	MFP6291LR-G1-MSKSEMI.pdf

MFP6291LR-G1 Product details

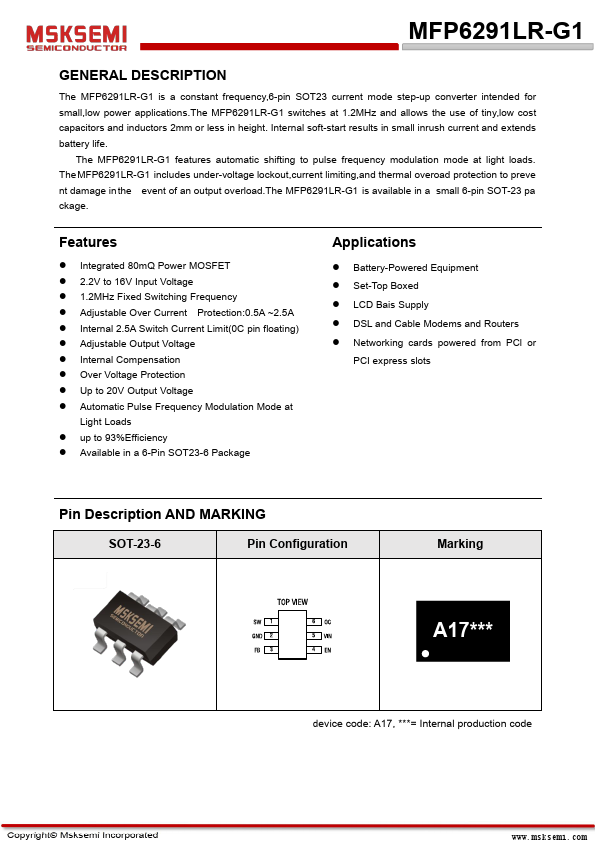

Description

The MFP6291LR-G1 is a constant frequency,6-pin SOT23 current mode step-up converter intended for small,low power applications.The MFP6291LR-G1 switches at 1.2MHz and allows the use of tiny,low cost capacitors and inductors 2mm or less in height.

Features

automatic shifting to pulse frequency modulation mode at light loads. The MFP6291LR-G1 includes under-voltage lockout,current limiting,and thermal overoad protection to preve nt damage in the event of an output overload. The MFP6291LR-G1 is available in a small 6-pin SOT-23 pa ckage. Features.
Integrated 80mQ Power MOSFET.
2.2V to 16V Input Voltage.
1.2MHz Fixed Switching Frequency.
Adjustable Over Current Protection:0.5A ~2.5A.
Internal 2.5A Switch Current Limit(0C pin.
