ESD9D5.0, ESD9D3.3 - ESD PROTECTION DIODE

ESD9D5.0 Description

MSV SEMI ESD9D3.3 ESD9D3.3 ESD PROTECTION DIODE Discription The ESD9D3.3 is designed to protect voltage sensitive components from ESD.Excellent cl.

ESD9D5.0 Features

* l Small Body Outline Dimensions: 0.039″ x 0.024″(1.0 mm x 0.60 mm) l Low Body Height: 0.017″ (0.43 mm) Max l Stand
* off Voltage: 3.3 V
* 12 V l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000
* 4
* 2 Le

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ESD9D5.0, ESD9D3.3. Please refer to the document for exact specifications by model.

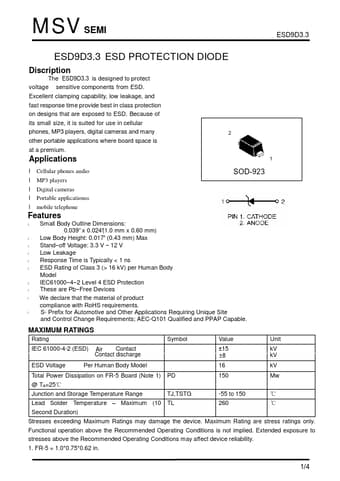

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ESD9D5.0, ESD9D3.3
Manufacturer
MSV
File Size
288.71 KB
Datasheet
ESD9D3.3-MSV.pdf
Description
ESD PROTECTION DIODE
Note
This datasheet PDF includes multiple part numbers: ESD9D5.0, ESD9D3.3.
Please refer to the document for exact specifications by model.
