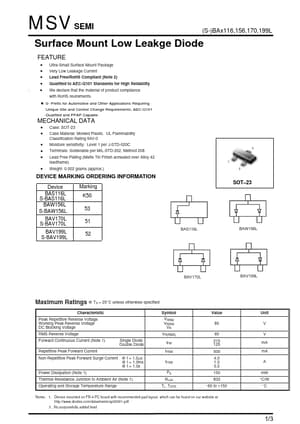

S-BAV170L
FEATURE
- Ultra-Small Surface Mount Package
- Very Low Leakage Current
- Lead Free/Ro HS pliant (Note 2)
- Qualified to AEC-Q101 Standards for High Reliability
.
- We declare that the material of product pliance with Ro HS requirements. z S- Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101
Qualified and PPAP Capable.
MECHANICAL DATA
- Case: SOT-23
- Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
- Moisture sensitivity: Level 1 per J-STD-020C
- Terminals: Solderable per MIL-STD-202, Method 208
- Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
- Weight: 0.002 grams (approx.)
DEVICE MARKING ORDERING INFORMATION
Device BAS116L S-BAS116L BAW156L S-BAW156L
BAV170L S-BAV170L
BAV199L S-BAV199L
Marking K50 53 51 52
BAS116L
3 1
SOT- 23
BAW156L
BAV170L
BAV199L
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage Working Peak...
