S-BAW156L, S-BAS116L Surface Mount Low Leakge Diode

Description

MSV SEMI (S-)BAx116,156,170,199L Surface Mount Low Leakge Diode .

📥 Download Datasheet

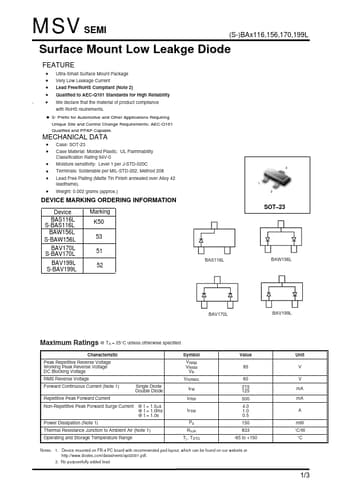

S-BAW156L Datasheet Preview — This datasheet PDF includes multiple part numbers: S-BAW156L, S-BAS116L. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: S-BAW156L, S-BAS116L
Manufacturer: MSV
File Size: 106.46 KB
Datasheet: S-BAS116L-MSV.pdf
Description: Surface Mount Low Leakge Diode
Note: This datasheet PDF includes multiple part numbers: S-BAW156L, S-BAS116L.
Please refer to the document for exact specifications by model.

Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. MECHANICAL DATA
* Case: SOT-23
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture sensitivity: Level 1 per J-STD-020C
* Terminals: Solderable per MIL-STD-2
