MT3206 - 60V N-Channel MOSFET

MT Semiconductor

📥 Download Datasheet

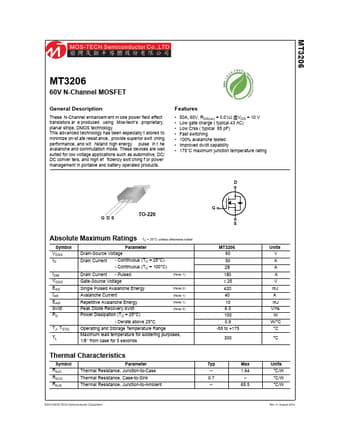

MT3206 Datasheet Preview — Preview of MT3206 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MT3206
Manufacturer	MT Semiconductor
File Size	778.78 KB
Description	60V N-Channel MOSFET
Datasheet	MT3206-MTSemiconductor.pdf

MT3206 Product details

Description

These N-Channel enhancem ent m ode power field effect transistors ar e produced using Mos-tech’s proprietary, planar stripe, DMOS technology.

Features

50A, 60V, RDS(on) = 0.01Ω @VGS = 10 V.
Low gate charge ( typical 43 nC).
Low Crss ( typical 85 pF).
Fast switching.
100% avalanche tested.
Improved dv/dt capability.
175°C maximum junction temperature rating GDS TO-220 Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt.
