MT3223 - N-Channel MOSFET

📥 Download Datasheet

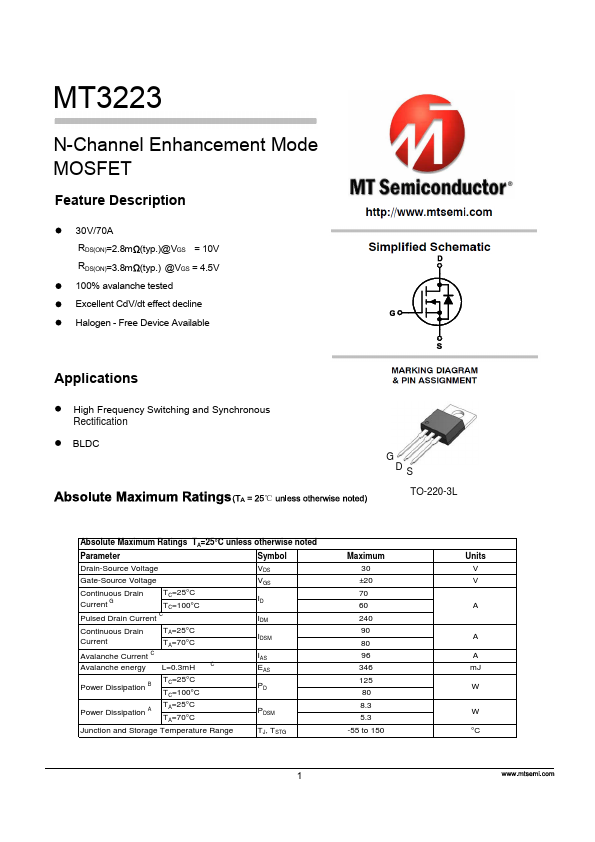

Preview of MT3223 PDF

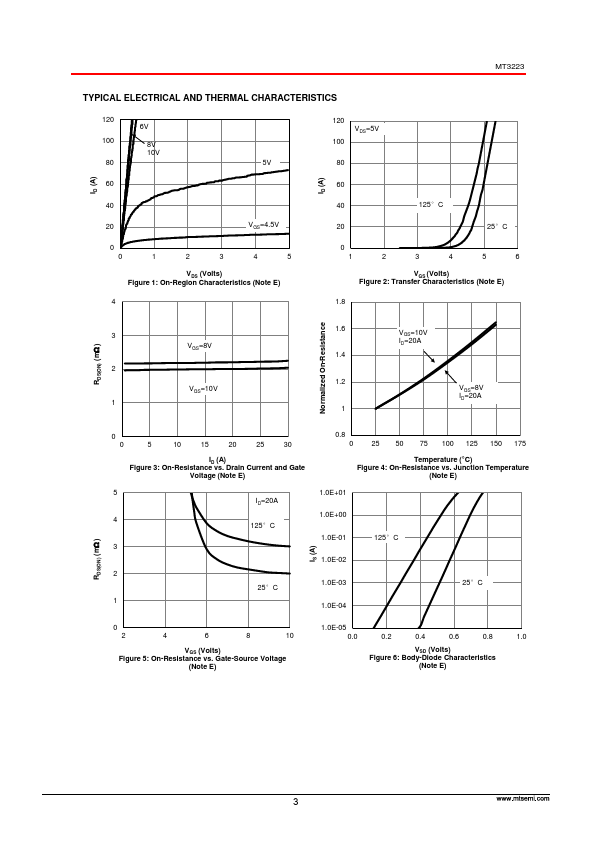

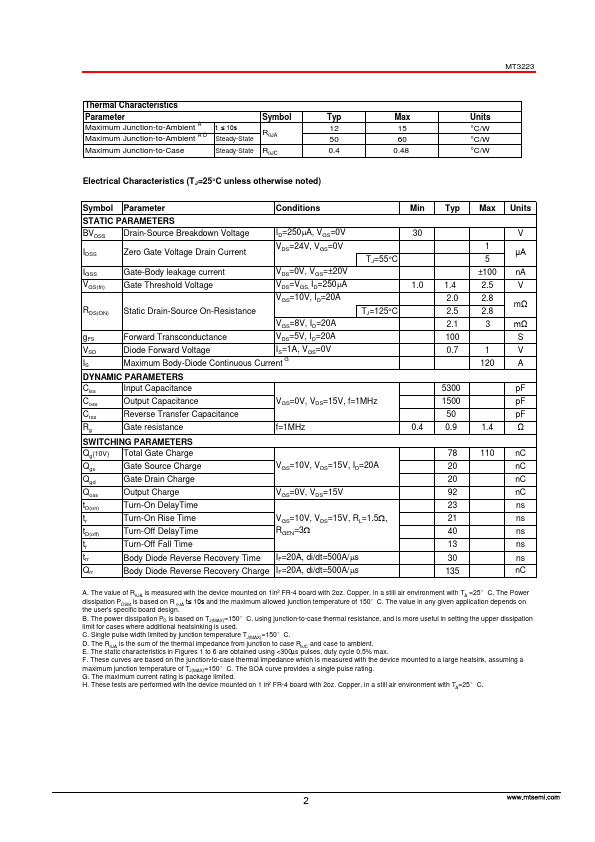

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number MT3223
Manufacturer MT Semiconductor
File Size 1.53 MB
Description N-Channel MOSFET
Datasheet download datasheet MT3223-MTSemiconductor.pdf

MT3223 Product details

Description

30V/70A RDS(ON)=2.8m (typ.)@VGS = 10V RDS(ON)=3.8m (typ.) @VGS = 4.5V 100% avalanche tested Excellent CdV/dt effect decline Halogen - Free Device Available Applications High Frequency Switching and Synchronous Rectification BLDC G DS TO-220-3L Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current G TC=25°C TC=100°C ID Pulsed Drain Current C IDM Continuous Drain Current TA=25°C TA=70°C ID
