MT3287B, MT3287 Datasheet - MT Semiconductor

MT3287B 70V 80A N-Channel Power MOSFET

MT3287/B N-Channel Power MOSFET  70V,80A,6.8mΩ )HDWXUHV ‡ Max RDS (on)=6.8m: at VGS =10V,ID=40A ‡ High performance trench technology for extremely low RDS (on) ‡High power and current handing capability HQHUDO'HVFULSWLRQ This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast sw.

MT3287-MTSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MT3287B, MT3287. Please refer to the document for exact specifications by model.

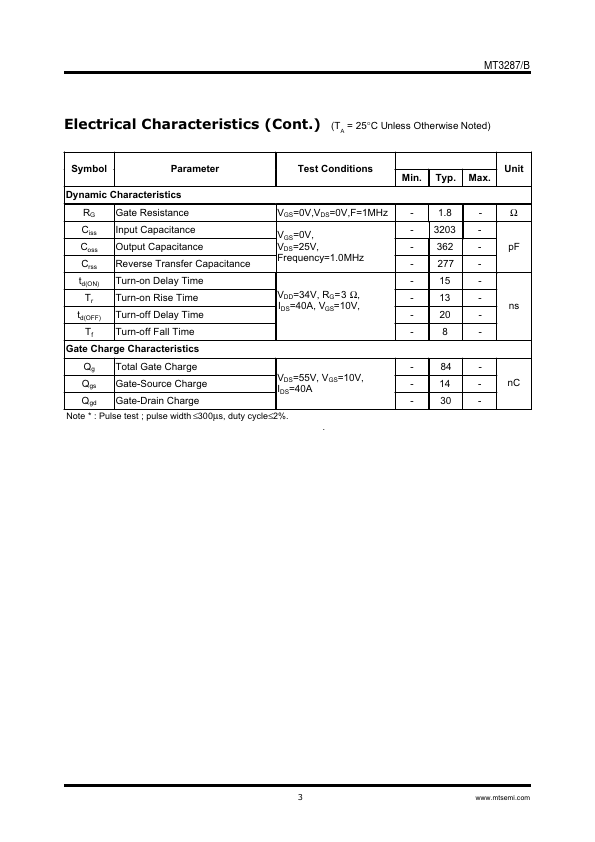

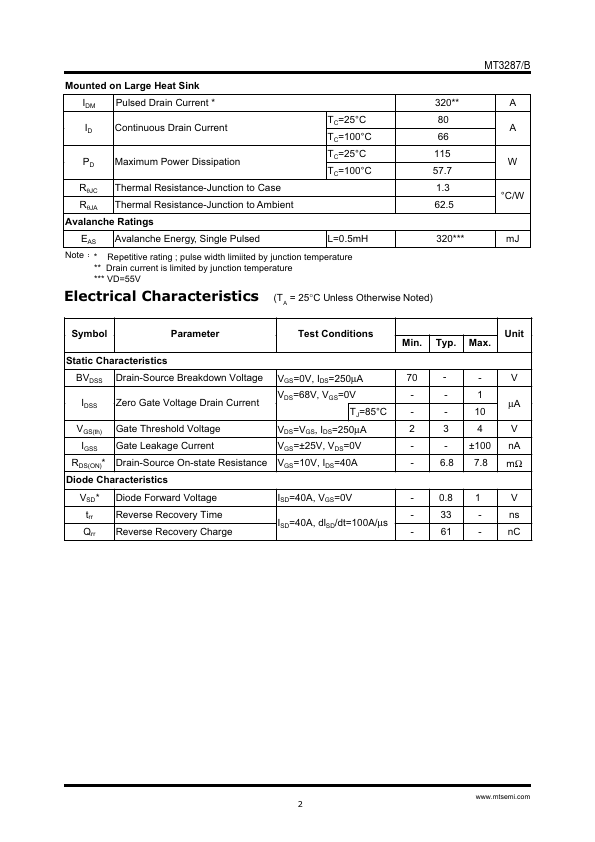

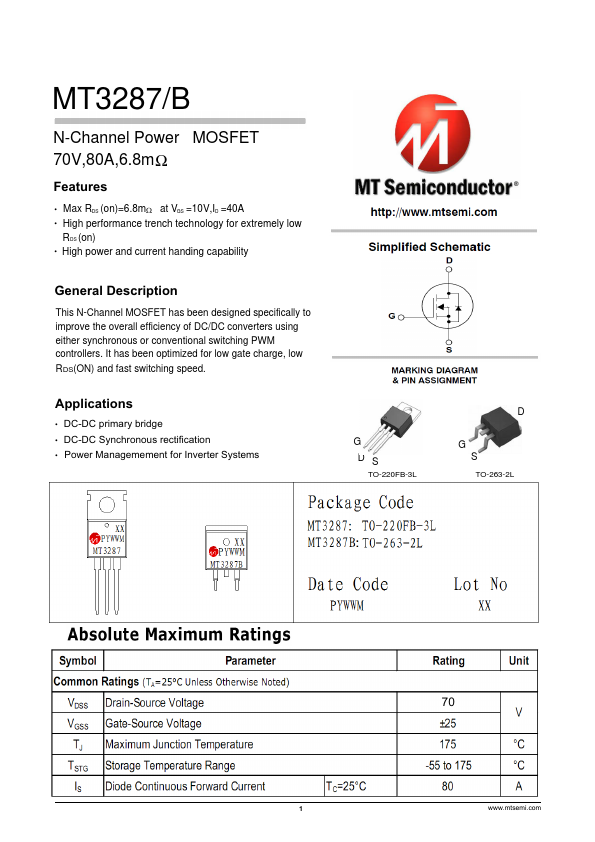

MT3287B Datasheet Preview Page 2 MT3287B Datasheet Preview Page 3

Datasheet Details

Part number:

MT3287B, MT3287

Manufacturer:

MT Semiconductor

File Size:

417.27 KB

Description:

70v 80a n-channel power mosfet.

Note:

This datasheet PDF includes multiple part numbers: MT3287B, MT3287.
Please refer to the document for exact specifications by model.
