XO3082 Temperature Compensated Crystal Oscillator

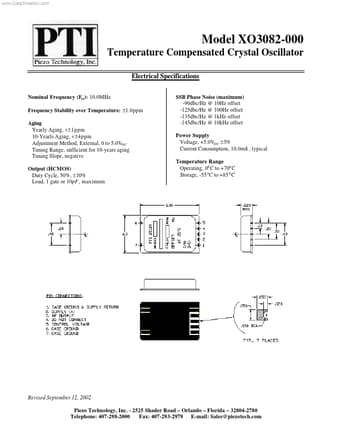

www.DataSheet4U.com Model XO3082-000 Temperature Compensated Crystal Oscillator Electrical Specifications Nominal Frequency (FO): 10.0MHz Frequency Stability over Temperature: ±1.0ppm Aging Yearly Aging, <± 1ppm 10-Yearls Aging, < ±4ppm Adjustment Method, External, 0 to 5.0VDC Tuning Range, sufficient for 10-years aging Tuning Slope, negative Output (HCMOS) Duty Cycle, 50%, ± 10% Load, 1 gate or 10pF , maximum SSB Phase Noise (maximum) -90dbc/Hz @ 10Hz offset -125dbc/Hz @ 100Hz offset -135dbc/H.
