60-JS6DT3 - DIESEL ENGINE-GENERATOR SET

Datasheet Summary

Features

  • //  Generator NEMA MG1, IEEE and ANSI standards compliance for temperature rise and motor starting Sustained short circuit current of up to 300% of the rated current for up to 10 seconds Self-Ventilated and Drip-Proof Superior Voltage Waveform Digital, Solid State, Volts-per-Hertz Regulator No Load to Full Load Regulation Brushless Alternator with Brushless Pilot Exciter 4 Pole, Rotating Field 130°C Standby Temperature Rise 1 Bearing, Sealed Full Amortisseur Windings 125% Rotor Balancing 3-P.

📥 Download Datasheet

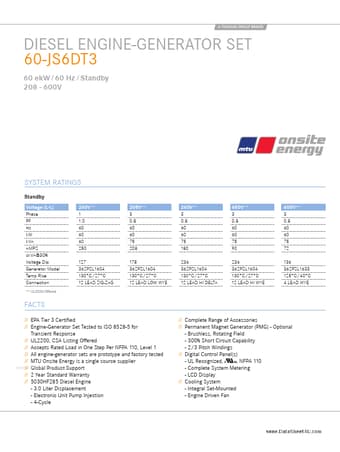

Datasheet preview – 60-JS6DT3

Datasheet Details

Part number 60-JS6DT3
Manufacturer MTU Onsite Energy
File Size 341.20 KB
Description DIESEL ENGINE-GENERATOR SET
Datasheet download datasheet 60-JS6DT3 Datasheet
Additional preview pages of the 60-JS6DT3 datasheet.

📁 Similar Datasheet

Other Datasheets by MTU Onsite Energy

Full PDF Text Transcription

Click to expand full text
A tognum Group Brand Diesel Engine-Generator Set 60-JS6DT3 60 ekW / 60 Hz / Standby 208 - 600V System Ratings Standby Voltage (L-L) Phase PF Hz kW kVA AMPS skVA@30% Voltage Dip Generator Model Temp Rise Connection ** UL2200 Offered 240V** 1 1.0 60 60 60 250 127 362PSL1604 130°C/27°C 12 LEAD ZIG-ZAG 208V** 3 0.8 60 60 75 208 178 362PSL1604 130°C/27°C 12 LEAD LOW WYE 240V** 3 0.8 60 60 75 180 236 362PSL1604 130°C/27°C 12 LEAD HI DELTA 480V** 3 0.8 60 60 75 90 236 362PSL1604 130°C/27°C 12 LEAD HI WYE 600V** 3 0.
