LLA315R70J225MA14L Datasheet - MURATA

LLA315R70J225MA14L Low ESL Ceramic Chip Capacitors

BACK MURATA Low ESL Ceramic Chip Capacitors This product is RoHS compliant. NEXT Murata offers a standard profile and low profile low inductance series of capacitors. Murataʼs Low ESL product line up includes the standard 2 terminal, reversed geometry type, (LLL Series), Eight (8) terminal type (LLA Series) and Ten (10) terminal type (LLM Series). These three series are plated with Ni and Matte Sn, and are RoHS compliant. Murataʼs Low ESL series provide high capacitance in small case sizes. T.

LLA315R70J225MA14L Features

* Low ESL: 80 to 120pH. Suitable for high speed (800MHz to 4GHz) IC decoupling. Operating Temperature: X7R: -55°C to 125°C w/ a ±15% cap change over temperature range. X7S: -55°C to 125°C w/ a ±22% cap change over temperature range. L W T Part No. Dimensions: mm L 1.6±0.1 2.

LLA315R70J225MA14L Datasheet (592.78 KB)

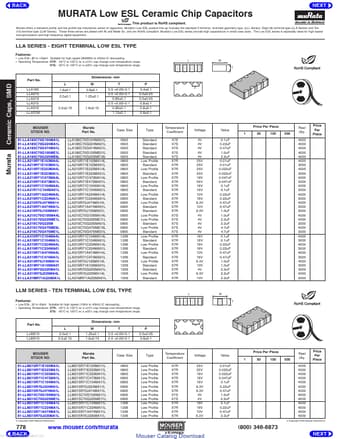

Preview of LLA315R70J225MA14L PDF

Datasheet Details

Part number:

LLA315R70J225MA14L

Manufacturer:

MURATA

File Size:

592.78 KB

Description:

Low esl ceramic chip capacitors.
