28F2000PPC - MX28F2000P

Datasheet Summary

Description

The MX28F2000P is a 2-mega bit Flash memory organized as 256K bytes of 8 bits each.

MXIC's Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory.

The MX28F2000P is packaged in 32-pin PDIP, PLCC and TSOP.

Features

  • 262,144 bytes by 8-bit organization.
  • Fast access time: 70/90/120 ns.
  • Low power consumption.
  • 50mA maximum active current.
  • 100uA maximum standby current.
  • Programming and erasing voltage 12V ± 5%.
  • Command register architecture.
  • Byte Programming (15us typical).
  • Auto chip erase 5 seconds typical (including preprogramming time).
  • Block Erase.
  • Optimized high density blocked architecture.
  • Four 4-K.

📥 Download Datasheet

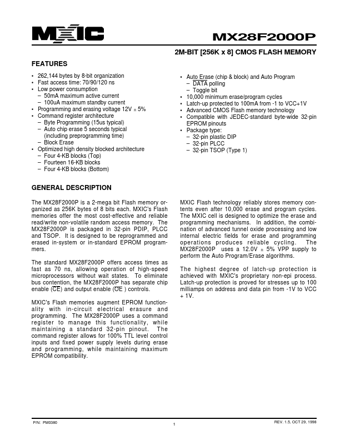

Datasheet preview – 28F2000PPC

Datasheet Details

Part number 28F2000PPC
Manufacturer MXIC
File Size 188.60 KB
Description MX28F2000P
Datasheet download datasheet 28F2000PPC Datasheet
Additional preview pages of the 28F2000PPC datasheet.

📁 Similar Datasheet

  • 28F200B5 - SMART 5 BOOT BLOCK FLASH MEMORY (Intel)
  • 28F200BL-B - LOW-POWER BOOT BLOCK FLASH MEMORY (Intel)
  • 28F200BL-T - LOW-POWER BOOT BLOCK FLASH MEMORY (Intel)
  • 28F200BX-B - BOOT BLOCK FLASH MEMORY (Intel)
  • 28F200BX-T - BOOT BLOCK FLASH MEMORY (Intel)
  • 28F211 - M28F211 (ST Microelectronics)
  • 28F256 - 256K(32K x8 / Chip Erase)FLASH MEMORY (STMicroelectronics)
  • 28F256 - 256 Kilobit (32 K x 8-Bit) CMOS 12.0 Volt / Bulk Erase Flash Memory (Advanced Micro Devices)
  • 28F256 - 256 Kilobit (32 K x 8-Bit) CMOS 12.0 Volt / Bulk Erase Flash Memory with Embedded Algorithms (Advanced Micro Devices)
  • 28F256 - 512 Kbit (64Kb x8 Bulk Erase)Flasxh Memory (STMicroelectronics)
Other Datasheets by MXIC

    Full PDF Text Transcription

    Click to expand full text
    FEATURES • 262,144 bytes by 8-bit organization • Fast access time: 70/90/120 ns • Low power consumption – 50mA maximum active current – 100uA maximum standby current • Programming and erasing voltage 12V ± 5% • Command register architecture – Byte Programming (15us typical) – Auto chip erase 5 seconds typical (including preprogramming time) – Block Erase • Optimized high density blocked architecture – Four 4-KB blocks (Top) – Fourteen 16-KB blocks – Four 4-KB blocks (Bottom) MX28F2000P 2M-BIT [256K x 8] CMOS FLASH MEMORY • Auto Erase (chip & block) and Auto Program – DATA polling – Toggle bit • 10,000 minimum erase/program cycles • Latch-up protected to 100mA from -1 to VCC+1V • Advanced CMOS Flash memory technology • Compatible with JEDEC-standard byte-wide 32-pin EPROM pinouts • Package
