MMF150S120DK2B, MMF150S120DK FRED

MMF150S120DK2B Description

February 2011 MMF150S120DK MMF150S120DK2B PRELIMINARY 1200V 150A FRED Module RoHS Compliant PRODUCT .

MMF150S120DK2B Features

* Ultrafast Reverse Recovery Time
* Soft Reverse Recovery Characteristics
* Low Reverse Recovery Loss
* Low Forward Voltage
* High Surge Current Capability

MMF150S120DK2B Applications

* Inversion Welder
* Uninterruptible Power Supply (UPS)
* Plating Power Supply
* Ultrasonic Cleaner and Welder
* Converter & Chopper
* Power Factor Correction (PFC) Circuit ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified Symbol VR VRRM IF(AV) IF(RMS) IFSM I2t P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MMF150S120DK2B, MMF150S120DK. Please refer to the document for exact specifications by model.

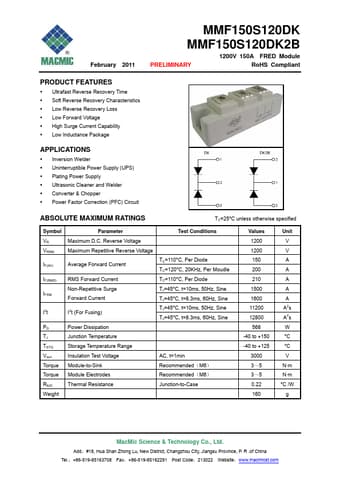

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMF150S120DK2B, MMF150S120DK
Manufacturer
MacMic
File Size
219.19 KB
Datasheet
MMF150S120DK-MacMic.pdf
Description
FRED
Note
This datasheet PDF includes multiple part numbers: MMF150S120DK2B, MMF150S120DK.
Please refer to the document for exact specifications by model.
