MBI5037 Datasheet - Macroblock

MBI5037 16-Channel Constant Current LED Driver

MBI5037 is an enhanced 16-channel constant current LED sink driver with advanced error detection functions and smart power-saving modes. MBI5037 succeeds MBI5026 and also exploits PrecisionDrive™ technology to enhance its output characteristics. Furthermore, MBI5037 uses the concept of Share-I-O™ te.

MBI5037 Features

* 16-Channel Constant Current LED Driver With Silent Error Detection and Power Saving Modes

* Package compatible with MBI5026 Small Outline Package

* 16 constant-current output channels Constant output current range: 3~80mA - 5~80mA @ 5V supply voltage - 3~60mA @ 3.3V supply voltage

MBI5037 Datasheet (659.65 KB)

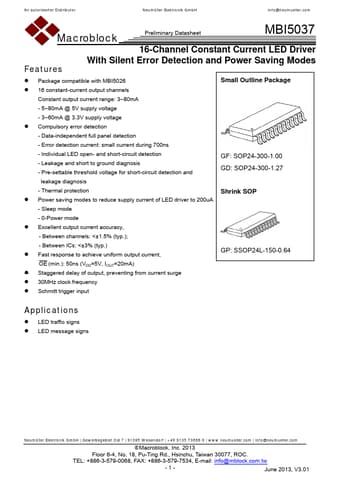

Preview of MBI5037 PDF

Datasheet Details

Part number:

MBI5037

Manufacturer:

Macroblock

File Size:

659.65 KB

Description:

16-channel constant current led driver.
