MBI6023 Datasheet - Macroblock

MBI6023 PWM-Embedded 3x4-Channel Constant-Current Sink Driver

MBI6023 is a 3x4-channel, constant-current, PWM-embedded sink driver for LED strips. MBI6023 provides constant current ranging from 3mA to 45mA for each output channel and are adjustable with three corresponding external resistors. Besides, MBI6023 can support both 3.3V and 5V power systems and sust.

MBI6023 Features

* 3x4-channel constant-current sink driver for LED strips

* Constant current range: 3~45mA

* 3 groups of output current, each group is set by an external resistor Shrink SOP

* Sustaining voltage at output channels: 17V (max.)

* Supply voltage 3V~5.5V

* Embedded 16-bit PW

MBI6023-Macroblock.pdf

Preview of MBI6023 PDF

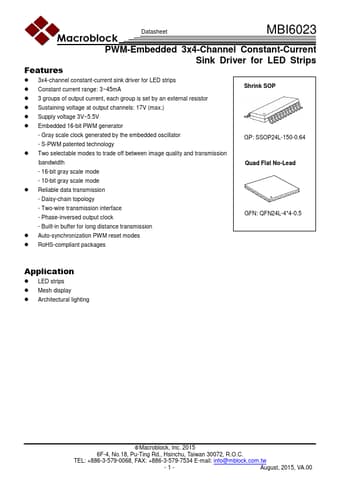

MBI6023 Datasheet Preview Page 2 MBI6023 Datasheet Preview Page 3

Datasheet Details

Part number:

MBI6023

Manufacturer:

Macroblock

File Size:

1.01 MB

Description:

Pwm-embedded 3x4-channel constant-current sink driver.
