25L1605D Datasheet - Macronix International

MX25L1605D

25L1605D Features

* GENERAL

* Serial Peripheral Interface compatible

* Mode 0 and Mode 3

* 16M:16,777,216 x 1 bit structure or 8,388,608 x 2 bits (two I/O read mode) structure 32M:33,554,432 x 1 bit structure or 16,772,216 x 2 bits (two I/O read mode) structure 64M:67,108,864 x 1 bit structure

25L1605D General Description

The MX25L1605D are 16,777,216 bit serial Flash memory, which is configured as 2,097,152 x 8 internally. When it is in two I/O read mode, the structure becomes 8,388,608 bits x 2. The MX25L3205D are 33,554,432 bit serial Flash memory, which is configured as 4,194,304 x 8 internally. When it is in two.

25L1605D Datasheet (1.02 MB)

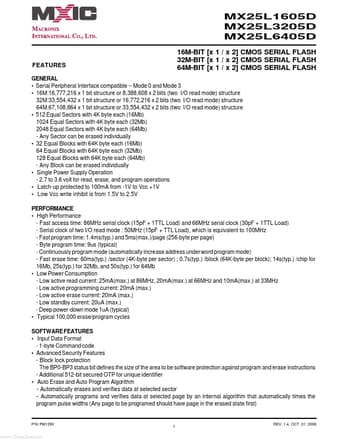

Preview of 25L1605D PDF

Datasheet Details

Part number:

25L1605D

Manufacturer:

Macronix International

File Size:

1.02 MB

Description:

Mx25l1605d.
MX25L1605D MX25L3205D MX25L6405D 16M-BIT [x 1 / x 2] CMOS SERIAL FLASH 32M-BIT [x 1 / x 2] CMOS SERIAL FLASH 64M-BIT [x 1 / x 2] CMOS SERIAL FLASH FE.
