MX98L715BEC - 3.3V SINGLE CHIP FAST ETHERNET NIC CONTROLLER

Macronix International

The MX98L715BEC by Macronix International is a 3.3V SINGLE CHIP FAST ETHERNET NIC CONTROLLER. Below is the official datasheet preview.

📥 Download Datasheet

MX98L715BEC 3.3V SINGLE CHIP FAST ETHERNET NIC CONTROLLER by Macronix International - Datasheet Preview — Official preview page of the **MX98L715BEC** 3.3V SINGLE CHIP FAST ETHERNET NIC CONTROLLER datasheet (Macronix International).

Datasheet Details

Part number	MX98L715BEC
Manufacturer	Macronix International
File Size	578.45 KB
Description	3.3V SINGLE CHIP FAST ETHERNET NIC CONTROLLER
Datasheet	MX98L715BEC_MacronixInternational.pdf

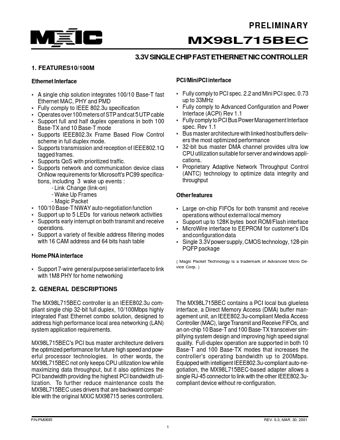

Additional preview pages of the MX98L715BEC datasheet.

MX98L715BEC Product details

Description

The MX98L715BEC controller is an IEEE802.3u compliant single chip 32-bit full duplex, 10/100Mbps highly integrated Fast Ethernet combo solution, designed to address high performance local area networking (LAN) system application requirements.

Features

0/100M Ethernet Interface.
A single chip solution integrates 100/10 Base-T fast Ethernet MAC, PHY and PMD.
Fully comply to IEEE 802.3u specification.
Operates over 100 meters of STP and cat 5 UTP cable.
Support full and half duplex operations in both 100 Base-TX and 10 Base-T mode.
Supports IEEE802.3x Frame Based Flow Control scheme in full duplex mode.
Supports transmission and reception of IEEE802.1Q tagged frames.
Supports QoS w.
