HS9016 10/100 Small Package Transformer module

10/100 Small Package Transformer module ★ Designed to meet IEEE802.3u requirement ★ Primary inductance 350μH min. with 8mA DC Bias ★ Operating temperature range: 0°C to +70°C ★ Reflow Condition :Maximum reflow temperature is 250°C/-5°C, time is 20~40 sec. (Refer to IPC/ JEDEC J-STD-020C standard). HS9016 Specifications Part Number HS9016 Turn Ratio Tx 1:1 Rx 1:1 Return Loss Insertion Loss (MHz) 0.3~100MHz (dB MAX) 30MHz 60MHz 100MHz 1.0 -18 dB -16dB -12dB CMRR (dB) 30MHz 50MHz 100MHz -45db -40.

HS9016 Datasheet (127.78 KB)

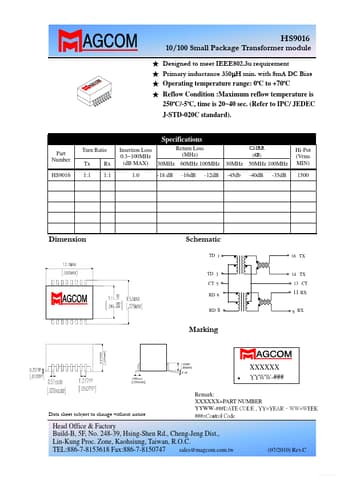

HS9016 Datasheet Preview — Preview of HS9016 PDF

Datasheet Details

Part number:

HS9016

Manufacturer:

Magcom

File Size:

127.78 KB

Description:

10/100 small package transformer module.
