MT4102 - Hall-Effect Magnetic Position Sensors

MT4102 Description

MT4102 Series Uni-polar, Hall-Effect Magnetic Position Sensors .
Flat TO-92 package, bulk packaging (1000pcs/bag) Flat TO-92 package, Radial lead, bulk packaging (1000pcs/bag) SOT-23 package, tape and reel packaging.

MT4102 Features

* Bipolar Technology Magnetic Type: Uni-polar Wide Operating Voltage Range: Supply Voltage 3.8~30V ℃ ℃Specified Operating Temperature Range: From
* 40 ~150 Magnetic Sensitivity Bop=80Gauss, Brp=50Gauss (typical) Lead Free Package Flat TO-92, SOT-23, SOT-89B Open Collector Output RoHS Compliant

📥 Download Datasheet

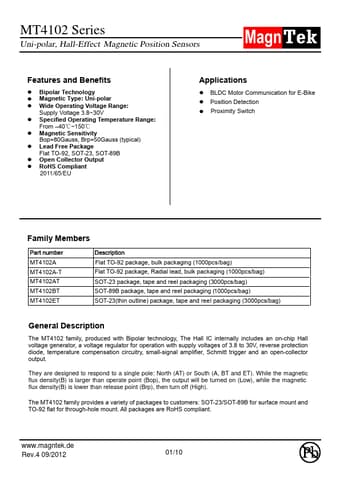

Preview of MT4102 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT4102
Manufacturer
MagnTek
File Size
1.13 MB
Datasheet
MT4102-MagnTek.pdf
Description
Hall-Effect Magnetic Position Sensors
