MT6816 Zero Latency Magnetic Angle Position Sensor

MT6816 Description

MT6816 Zero Latency Magnetic Angle Position Sensor IC .
The MagnTek rotary position sensor MT6816 is an IC based on advanced AMR technology.

MT6816 Features

* ￭ Based on advanced AMR Technology with 0~360° Full Range Angle Sensing ￭ 14-bit Core Resolution ￭ Maximum Rotation Speed 25,000 RPM ￭ Output Propagation Delay

MT6816 Applications

* ￭ Absolute Angle Position Sensor ￭ BLDC Motor Control ￭ Servo Motor Control ￭ Stepping Motor Control ￭ Optical Encoder Replacement The incremental ABZ output mode is available in this sensor series, making the chip suitable to replace various optical encoders. The maximum resolution is 4096 steps o

📥 Download Datasheet

Preview of MT6816 PDF

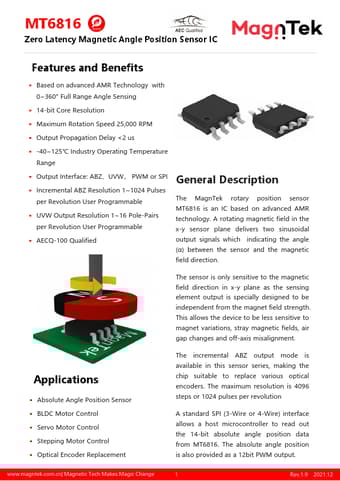

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MT6816
Manufacturer
MagnTek
File Size
640.88 KB
Datasheet
MT6816-MagnTek.pdf
Description
Zero Latency Magnetic Angle Position Sensor
