60R580QS Datasheet - MagnaChip

N-channel MOSFET

60R580QS Features

* Low Power Loss by High Speed Switching and Low On-Resistance

* 100% Avalanche Tested

* Green Package

* Pb Free Plating, Halogen Free

* Applications

* PFC Power Supply Stages

* Switching Applications

* Adapter

* Ordering Information Order Code MMSF60R580QT

60R580QS General Description

MMSF(A)60R580Q is power MOSFET using magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much high efficiency by using optimized charge coupling technology. These user friendly devices give an advantage of Low EMI to designers as we.

60R580QS Datasheet (1.45 MB)

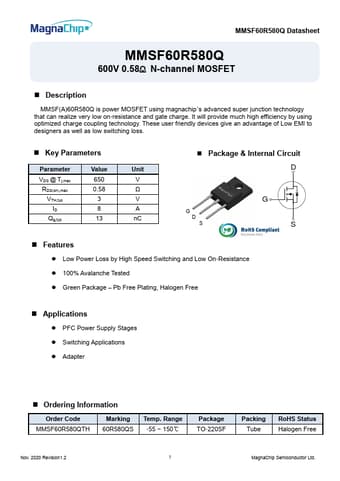

60R580QS Datasheet Preview — Preview of 60R580QS PDF

Datasheet Details

Part number:

60R580QS

Manufacturer:

MagnaChip

File Size:

1.45 MB

Description:

N-channel mosfet.
