Description
This IGBT is produced using advanced Magnachip’s Field Stop Trench IGBT Technology, which provides low VCE(sat), high speed switching and high ruggedness performance and excellent quality.
E-compressor
PTC Heater
Features
- High Speed Switching & Low Power Loss.
- VCE(sat) = 1.75V @ IC = 40A.
- High Input Impedance.
- trr = 285ns (typ. ).
- Ultra-Soft, fast recovery anti-parallel diode.
- Ultra-narrowed VF distribution control.
- Positive Temperature coefficient for easy paralleling.
- AEC-Q101 qualified
TO-247
GCE
Package outline and symbol
Absolute Maximum Ratings
Characteristics Collector-emitter voltage Gate-emitter voltage
DC collector current, limited by Tvjmax
Pulsed collector c.

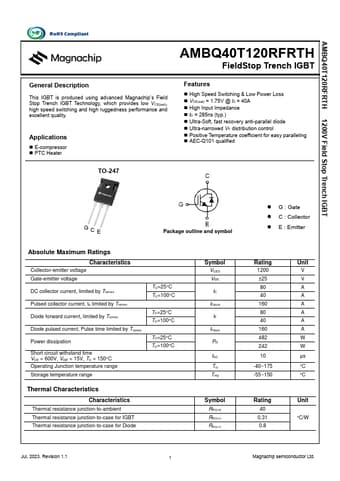

AMBQ40T120RFRTH-MagnaChip.pdf
