MMF80R1K2QZ - N-channel MOSFET

MMF80R1K2QZ Description

MMF80R1K2QZ Datasheet MMF80R1K2QZ 800V 1.2Ω N-channel MOSFET * .
MMF80R1K2QZ is power MOSFET using Magnachip’s advanced super junction technology that can realize very low on-resistance and gate charge.

MMF80R1K2QZ Features

* Low Power Loss by High Speed Switching and Low On-Resistance
* Excellent ESD robustness
* 100% Avalanche Tested
* Green Package
* Pb Free Plating, Halogen Free

MMF80R1K2QZ Applications

* PFC Power Supply Stages
* Switching Applications
* Adapter
* Ordering Information Order Code Marking Temp. Range Package MMF80R1K2QZTH 80R1K2QZ -55 ~ 150 oC TO-220F(3L) Jun. 2023. Revision 1.3 1 Packing Tube RoHS Status Compliant Magnachip Semiconductor Ltd. MMF80R1K2QZ D

📥 Download Datasheet

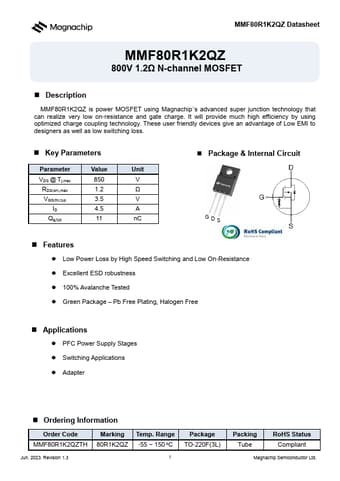

Preview of MMF80R1K2QZ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMF80R1K2QZ
Manufacturer
MagnaChip
File Size
1.30 MB
Datasheet
MMF80R1K2QZ-MagnaChip.pdf
Description
N-channel MOSFET
