MPKB2CA100U60 - 600V FRD Module

MagnaChip

📥 Download Datasheet

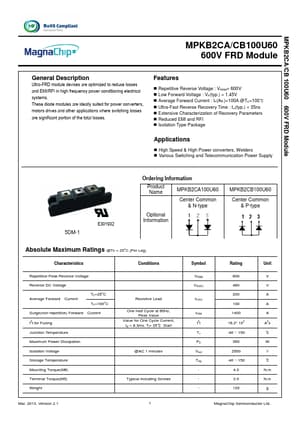

MPKB2CA100U60 Datasheet Preview — Preview of MPKB2CA100U60 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPKB2CA100U60
Manufacturer	MagnaChip
File Size	606.82 KB
Description	600V FRD Module
Datasheet	MPKB2CA100U60-MagnaChip.pdf

MPKB2CA100U60 Product details

Description

Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems.

Features

Repetitive Reverse Voltage : VRRM= 600V.
Low Forward Voltage : VF(typ. ) = 1.45V.
Average Forward Current : IF(Av. )=100A @TC=100℃.
Ultra-Fast Reverse Recovery Time : trr(typ. ) = 35ns.
Extensive Characterization of Recovery Parameters.
Reduced EMI and RFI.
Isolation Type Package.
