00K4022E090 Datasheet - Magnetics

00K4022E090 E Core

00K4022E090 110 Delta Drive Pittsburgh, PA 15238 NAFTA Sales: (1)800-245-3984 HK Sales : (852)3102-9337 magnetics@spang.com www.mag-inc.com Kool Mµ Permeability (µ) 90 AL (nH/T2) 281 ± 8% Core Marking Lot Number Part number XXXXXX K4022E090 Dimensions Tolerance (±) Packaging (mm) (in) (mm) (in) A 42.85 1.687 0.635 0.025 B 21.1 0.830 0.330 0.013 Box Qty= 168 pcs C 20.0 0.788 0.254 0.010 D 14.9 0.587 - - Min Available Hardware E 30.35 1.195 - - Min PCB4022N1 F 11.9 0.468 0.

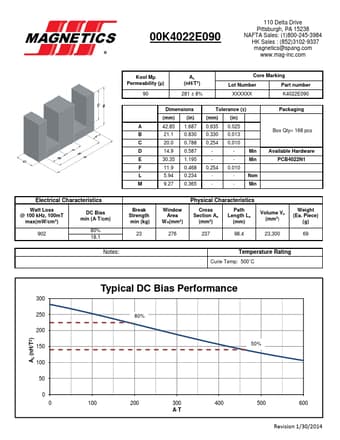

00K4022E090 Datasheet (93.40 KB)

00K4022E090 Datasheet Preview — Preview of 00K4022E090 PDF

Datasheet Details

Part number:

00K4022E090

Manufacturer:

Magnetics

File Size:

93.40 KB

Description:

E core.
