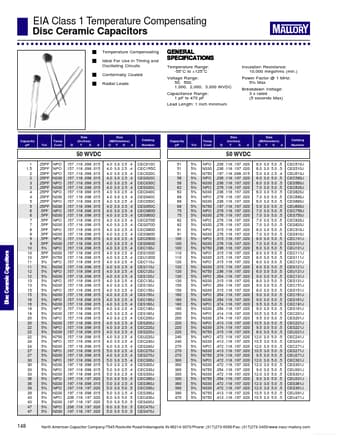

CMC010C Disc Ceramic Capacitors

EIA Class 1 Temperature Compensating Disc Ceramic Capacitors { { { { Temperature Compensating Ideal For Use in Timing and Oscillating Circuits Conformally Coated Radial Leads GENERAL SPECIFICATIONS Temperature Range: -55 gC to +125gC Voltage Range: 50, 500, 1,000, 2,000, 3,000 WVDC Capacitance Range: 1 pF to 470 pF Lead Length: 1 inch minimum Insulation Resistance: 10,000 megohms (min.) Power Factor @ 1 MHz: 5% Max Breakdown Voltage: 3 x rated (5 seconds Max) Capacity pF Tol Temp Coef D Si.
