SXR470M063ST, SXR121M6R3ST Datasheet - Mallory

SXR121M6R3ST_Mallory.pdf

This datasheet PDF includes multiple part numbers: SXR470M063ST, SXR121M6R3ST. Please refer to the document for exact specifications by model.

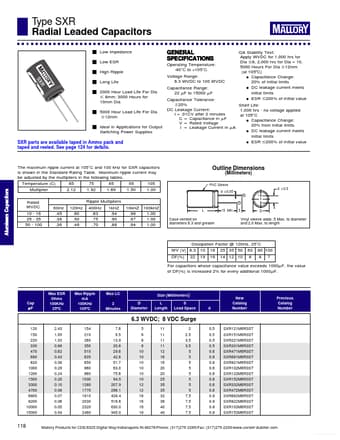

SXR470M063ST Datasheet Preview Page 2 SXR470M063ST Datasheet Preview Page 3

Datasheet Details

Part number:

SXR470M063ST, SXR121M6R3ST

Manufacturer:

Mallory

File Size:

62.07 KB

Description:

Radial leaded capacitors.

Note:

This datasheet PDF includes multiple part numbers: SXR470M063ST, SXR121M6R3ST.
Please refer to the document for exact specifications by model.

SXR470M063ST, SXR121M6R3ST, Radial Leaded Capacitors

Type SXR Radial Leaded Capacitors { Low Impedance { Low ESR GENERAL SPECIFICATIONS { High Ripple { Long Life { 2000 Hour Load Life For Dia ͨ 8mm; 3000 Hours for 10mm Dia { 5000 Hour Load Life For Dia ͧ12mm { Ideal in Applications for Output Switching Power Supplies SXR parts are available taped in Ammo pack and f taped and reeled.

See page 124 for details.

QA Stability Test: Apply WVDC for 1,000 hrs for Dia ͨ8, 2,000 hrs for Dia = 10, Operating Temperature: 5000 Hours For Dia ͧ12mm -40gC to
