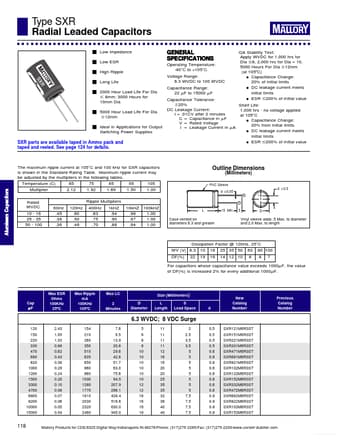

SXR680M100ST Datasheet - Mallory

SXR680M100ST Radial Leaded Capacitors

Type SXR Radial Leaded Capacitors { Low Impedance { Low ESR GENERAL SPECIFICATIONS { High Ripple { Long Life { 2000 Hour Load Life For Dia ͨ 8mm; 3000 Hours for 10mm Dia { 5000 Hour Load Life For Dia ͧ12mm { Ideal in Applications for Output Switching Power Supplies SXR parts are available taped in Ammo pack and f taped and reeled. See page 124 for details. QA Stability Test: Apply WVDC for 1,000 hrs for Dia ͨ8, 2,000 hrs for Dia = 10, Operating Temperature: 5000 Hours For Dia ͧ12mm -40gC to .

SXR680M100ST Datasheet (62.07 KB)
