TAS276M010P1C Datasheet - Mallory

TAS276M010P1C Solid Tantalum Capacitors

Type TAS Solid Tantalum Capacitors Solid Tantalum Capacitors { Hermetically Sealed { High Capacitance { Low DC Leakage { Low Dissipation Factor { Temperature Stable { Frequency Stable { Moisture/Solvent Resistant { Miniature Size { Long Shelf Life GENERAL DC Leakage: SPECIFICATIONS Operating Temperature: -55gC to +125gC (With proper derating) Voltage Range: 6 to 100 WVDC @ 85gC Reverse Voltage (Non-continuous): At +25°C - See Table Limit At +85°C - 10 x Table Limit At +125°C- 12.5 x Table .

TAS276M010P1C Features

* .5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 Case Code Max Max DCL D.F. % @ +25gC @+25gC (ȐA) 120 Hz Catalog Number 75 WVDC @ 85gC 50 WVDC @ 125gC A 0.3 2 TAS394

* 075P1A A 0.3 2 TAS474

* 075P1A A 0.3 2 TAS564

* 075P1A A 0.3 2 TAS684

* 075P1A C 0.3 2 TAS824

* 075P1C C 0.3

TAS276M010P1C Datasheet (42.88 KB)

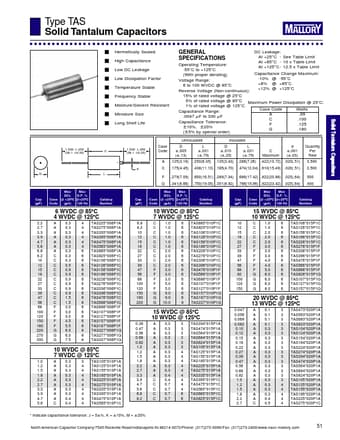

TAS276M010P1C Datasheet Preview — Preview of TAS276M010P1C PDF

Datasheet Details

Part number:

TAS276M010P1C

Manufacturer:

Mallory

File Size:

42.88 KB

Description:

Solid tantalum capacitors.
