LC503FWH1-15Q-A0 - 5mm Round Lens LEDs Straight Leads

Datasheet Summary

Description

The information in this document is subject to change without notice.

Marktech Optoelectronics

📥 Download Datasheet

Datasheet Details

Part number	LC503FWH1-15Q-A0
Manufacturer	Marktech Optoelectronics
File Size	417.97 KB
Description	5mm Round Lens LEDs Straight Leads
Datasheet	LC503FWH1-15Q-A0 Datasheet
Additional preview pages of the LC503FWH1-15Q-A0 datasheet.

📁 Similar Datasheet

LC503MBG1-15Q - Blue-Green 15 5mm LED lamp (Marktech Corporate)
LC503MBL1-06Q - Blue 6 5mm LED lamp (Marktech Corporate)
LC503MBL1-45Q - Blue 45 5mm LED lamp (Marktech Corporate)
LC503MHR1-06Q - Red 6 5mm LED lamp (Marktech Corporate)
LC503MHR1-15Q - Red 15 5mm LED lamp (Marktech Corporate)
LC503MHR1-30Q - Red 30 5mm LED lamp (Marktech Corporate)
LC503MUV1-30Q - LED LAMP (ETC)
LC503MYL1-06Q - Yellow 6 5mm LED lamp (Marktech Corporate)
LC503MYL1-15Q - Yellow 15 5mm LED lamp (Marktech Corporate)
LC503MYL1-30Q - Yellow 30 5mm LED lamp (Marktech Corporate)

Other Datasheets by Marktech Optoelectronics

LC503FBL1-15Q-A3 - Ultra Bright LEDs
LC503FBL1-15Q-A3-MT - Ultra Bright LEDs

Full PDF Text Transcription

Click to expand full text

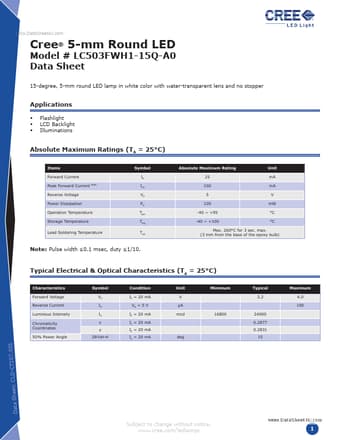

www.DataSheet4U.com Cree® 5-mm Round LED Model # LC503FWH1-15Q-A0 Data Sheet 15-degree, 5-mm round LED lamp in white color with water-transparent lens and no stopper Applications • • • Flashlight LCD Backlight Illuminations Absolute Maximum Ratings (TA = 25°C) Items Forward Current Peak Forward Current Reverse Voltage Power Dissipation Operation Temperature Storage Temperature Lead Soldering Temperature Note Symbol IF IFP VR PD Topr Tstg Tsol Absolute Maximum Rating 25 100 5 100 -40 ~ +95 -40 ~ +100 Unit mA mA V mW °C °C Max. 260°C for 3 sec. max. (3 mm from the base of the epoxy bulb) Note: Pulse width ≤0.1 msec, duty ≤1/10.
