88E1116R - Gigabit Ethernet Transceiver

Marvell

📥 Download Datasheet

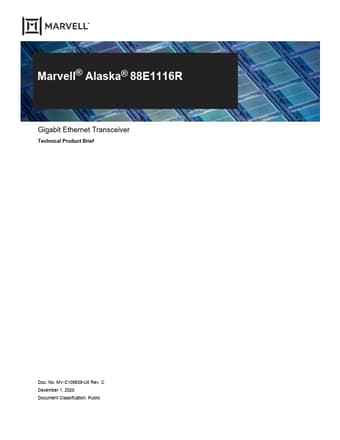

88E1116R Datasheet Preview — Preview of 88E1116R PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	88E1116R
Manufacturer	Marvell
File Size	1.73 MB
Description	Gigabit Ethernet Transceiver
Datasheet	88E1116R-Marvell.pdf

88E1116R Product details

Features

10/100/1000BASE-T IEEE 802.3 compliant.
Four RGMII timing modes - This eliminates the need for adding trace delays on the PCB.
Supports LVCMOS, SSTL, and HSTL I/O Stan- dards on the RGMII interface.
Integrated MDI interface termination resistors that eliminate twelve passive components.
Energy Detect and Energy Detect+ low power modes.
Three loopback modes for diagnostics.
“Downshift” mode for two-pair cable installations.
